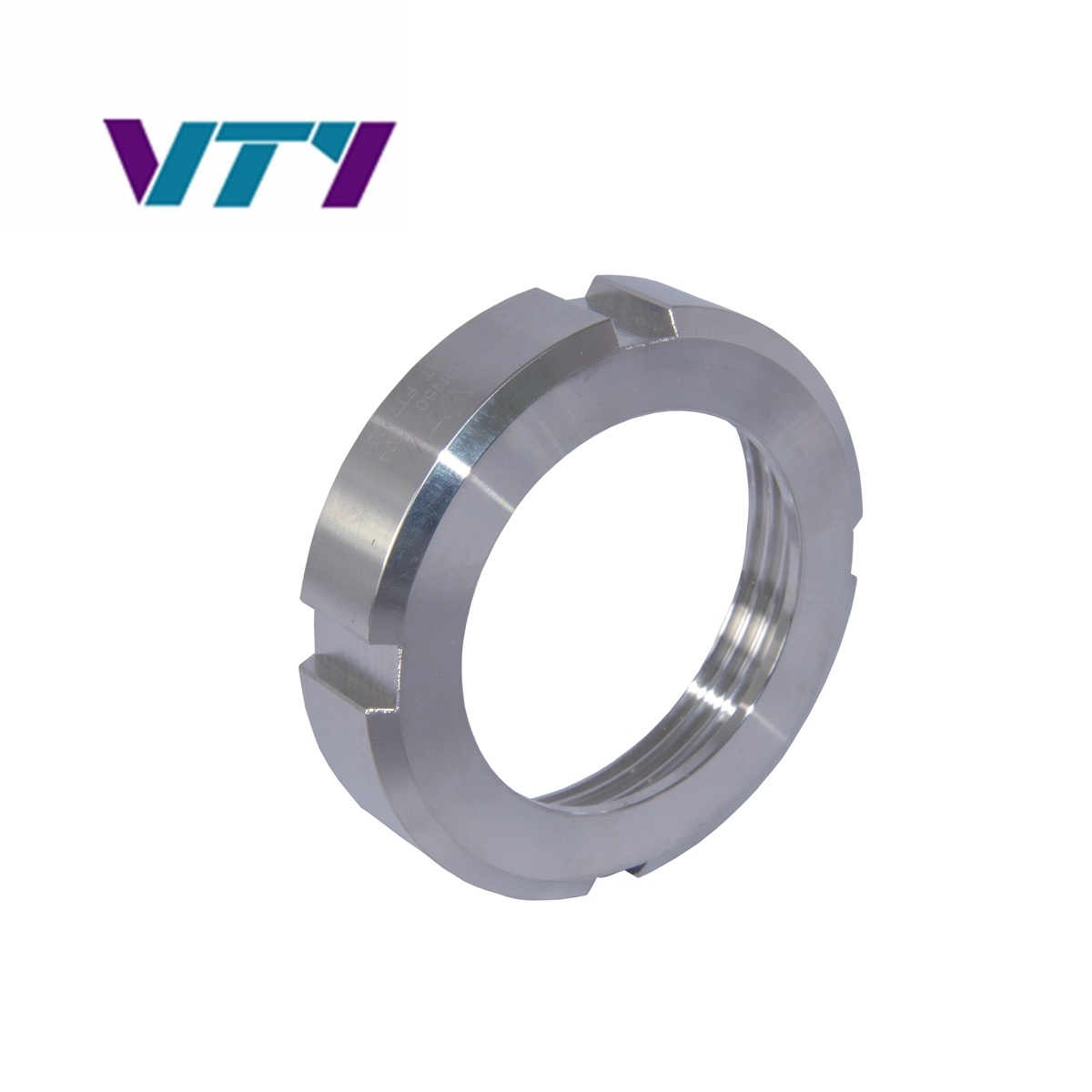

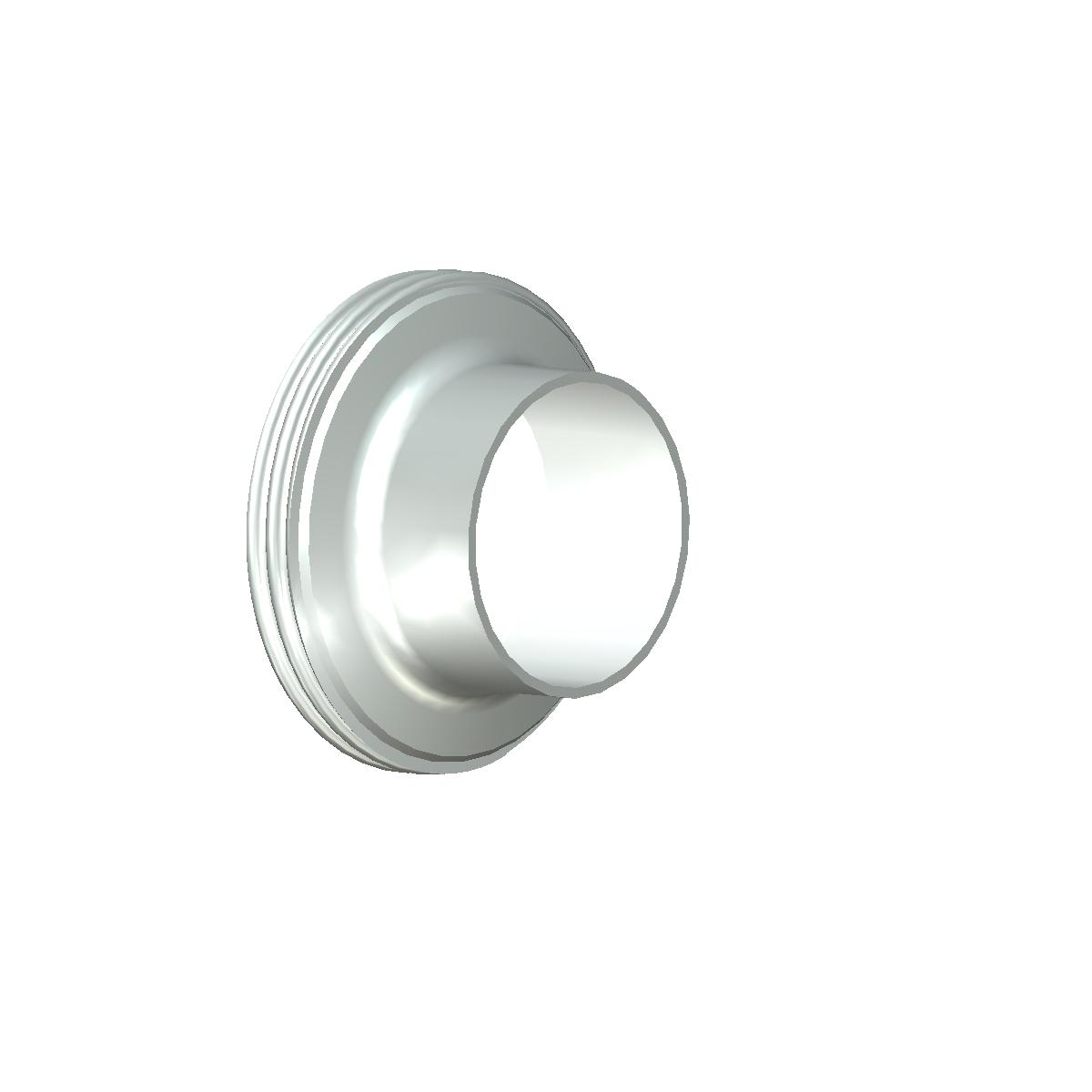

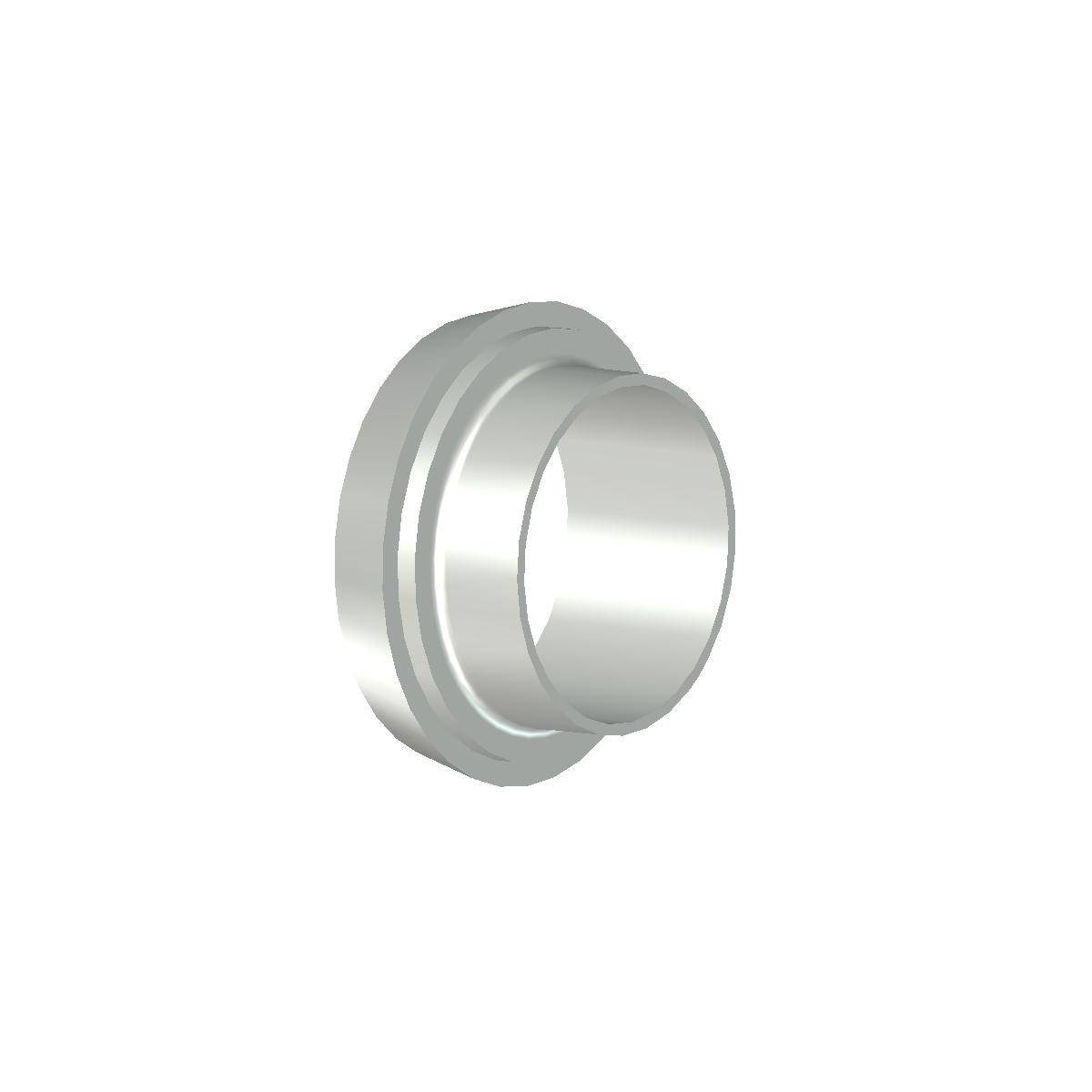

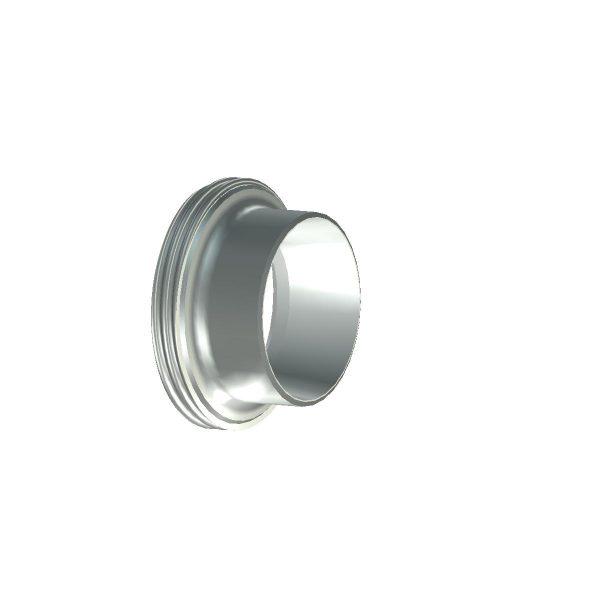

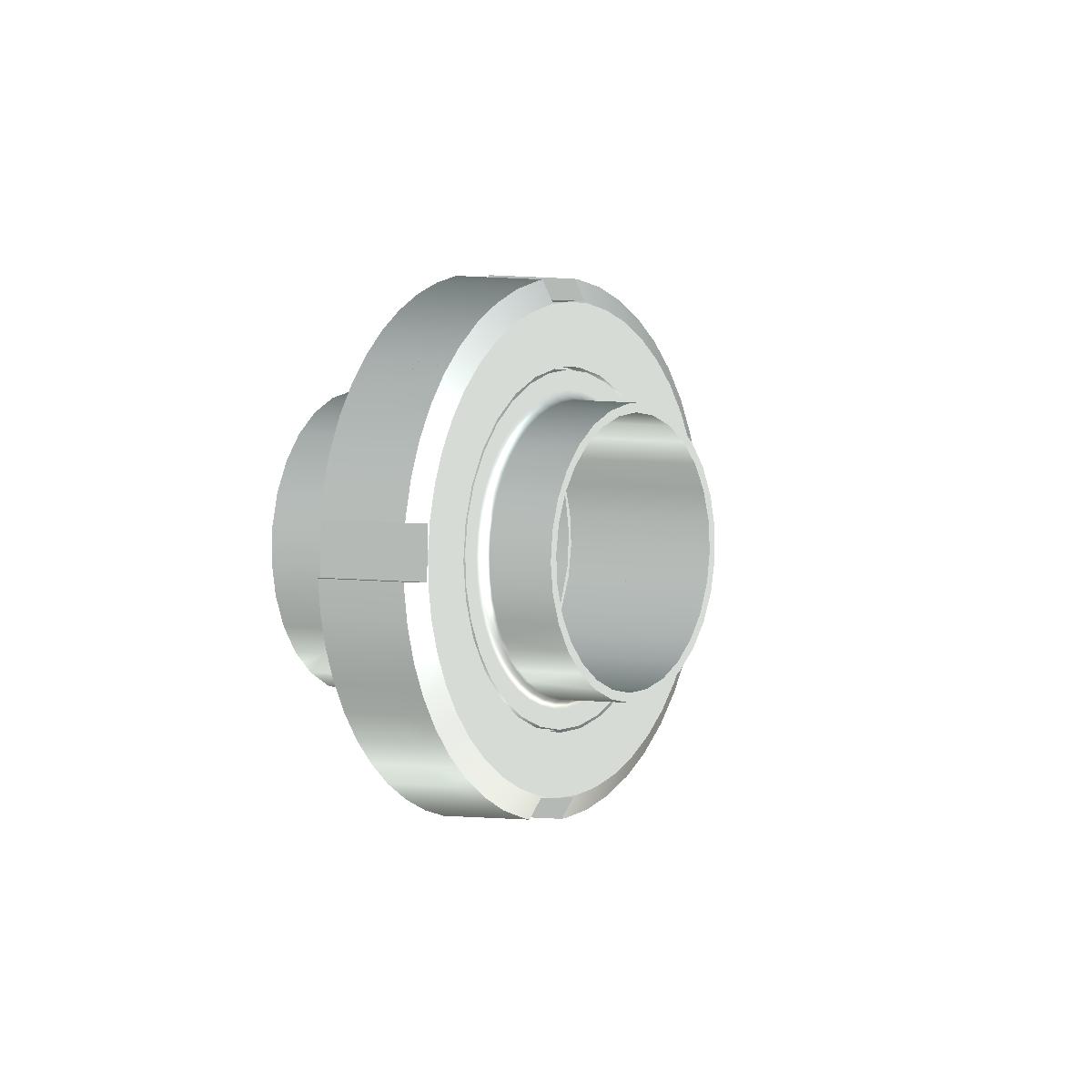

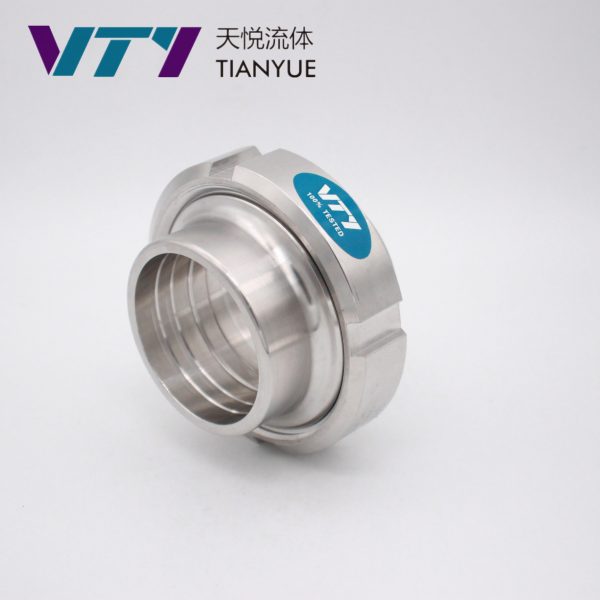

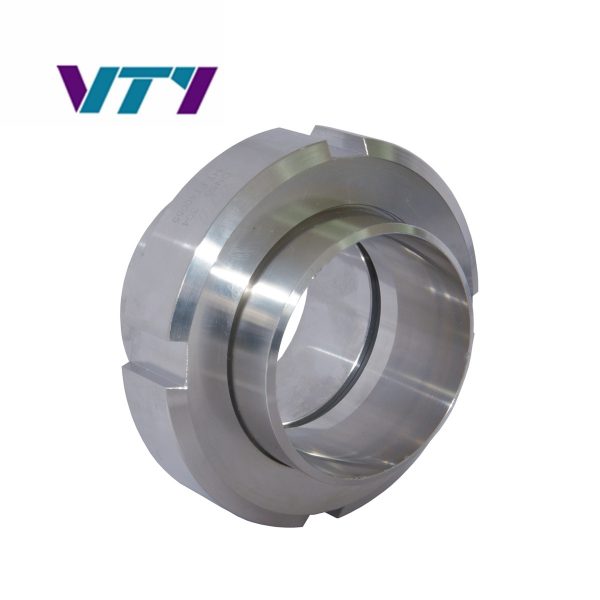

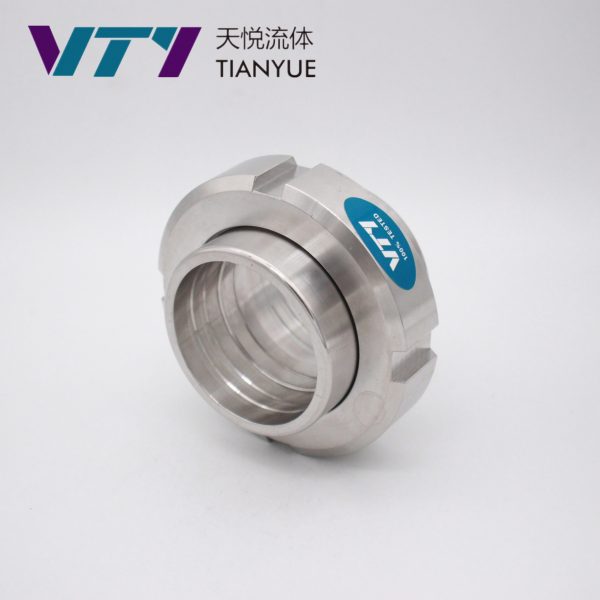

Description
| Standard | DIN,3A,SMS,RJT,ISO,IDF,DS,Macon,GB |
| Size | 1”-6” DN10-DN200 17.2-168.3 |
| Steel material | 304,304L,316,316L(Forging) |
| Seal material | NBR,Silicone,EPDM,EFPM,PTFE |
| Surface qualities | 1.Ra≤1.6µm |
| 2.Ra≤0.87µm | |
| 3.Ra≤0.4µm(Polished) |
0%
|
Size |
A |
B |
C |
M |
H |
|
3/8” |
/ | / | / | / | / |
|
1/2” |
12.7 | 9.4 | 44 | Rd34X1/8” |
34 |
|
3/4” |
19.05 | 15.75 | 54 | Rd44X1/6” | 36 |
|
1” |
25.4 | 22.9 | 63 | Rd52X1/6” | 45 |
|
1 1/4” |
31.75 | 28.75 | 70 | Rd58X1/6” | 51 |
|
1 1/2” |
38.1 | 35.1 | 78 | Rd65X1/6” | 53 |
| 2” | 50.8 | 47.8 | 92 | Rd78X1/6” |
57 |
| 2 1/2” | 63.5 | 60.2 | 112 | Rd95X1/6” |
65 |
| 3” | 76.1 | 72.8 | 127 | Rd110X1/4” |
75 |
| 4” | 101.6 | 97.6 | 148 | Rd130X1/4” |
89 |
| 5” | 127.0 | 121.46 | 178 | Rd160X1/4” |
70 |
| 6” | 152.4 | 146.86 | 210 | Rd190X1/4” |
76 |
| Standard | DIN,3A,SMS,RJT,ISO,IDF,DS,Macon,GB |
| Size | 1”-6” DN10-DN200 17.2-168.3 |
| Steel material | 304,304L,316,316L(Forging) |
| Seal material | NBR,Silicone,EPDM,EFPM,PTFE |
| Surface qualities | 1.Ra≤1.6µm |
| 2.Ra≤0.87µm | |
| 3.Ra≤0.4µm(Polished) |
